K-Series Swap Kit Bolt Lengths

This page is to show which bolts go where with our K swap kit.

How to Measure

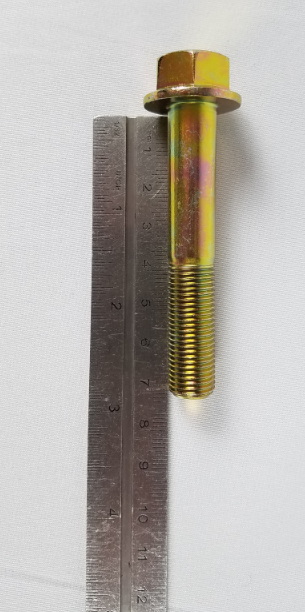

Bolts are measured starting under the head, to the end of the threads. A 70mm bolt is shown there:

IMPORTANT: Due to supply issues some of the bolts supplied in your kit may be 5-10mm longer than the lengths listed here.

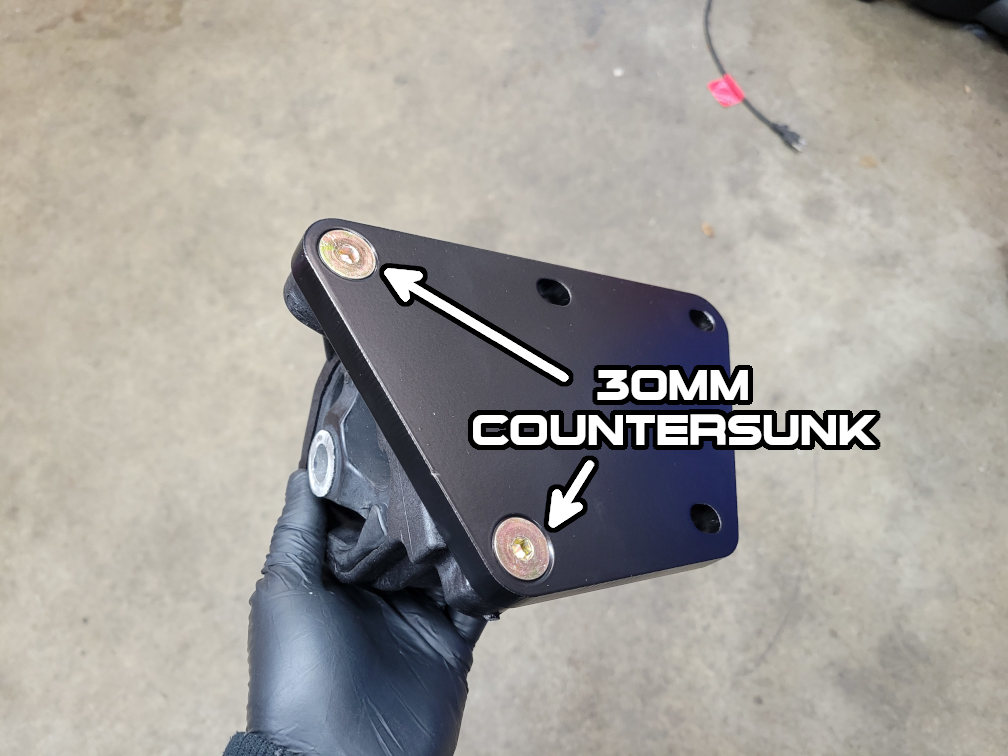

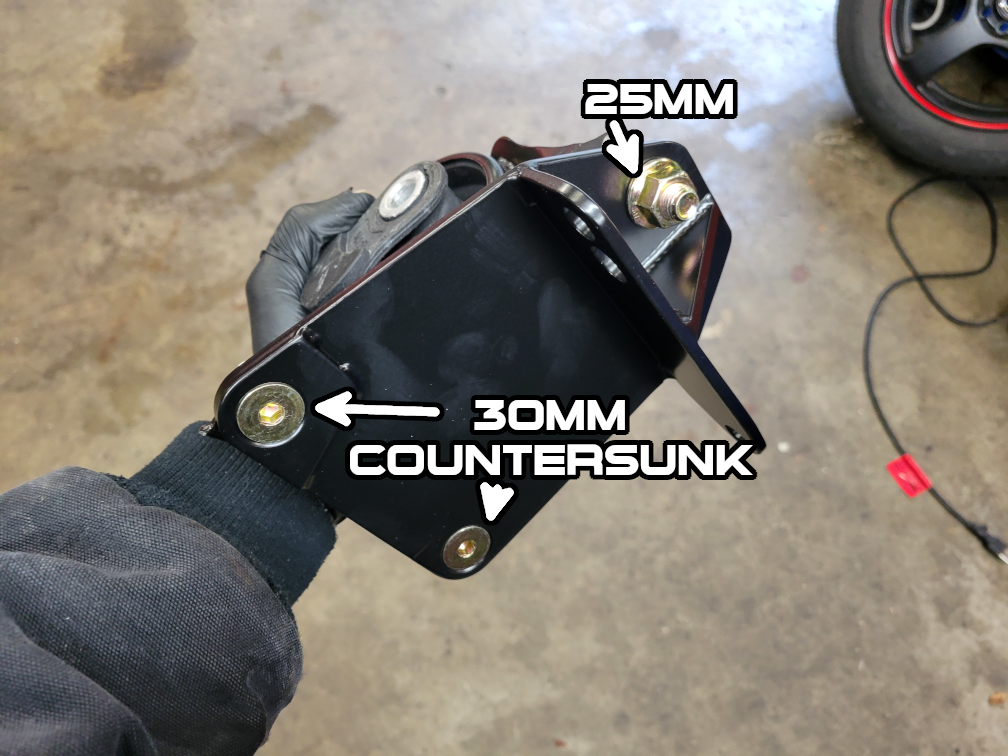

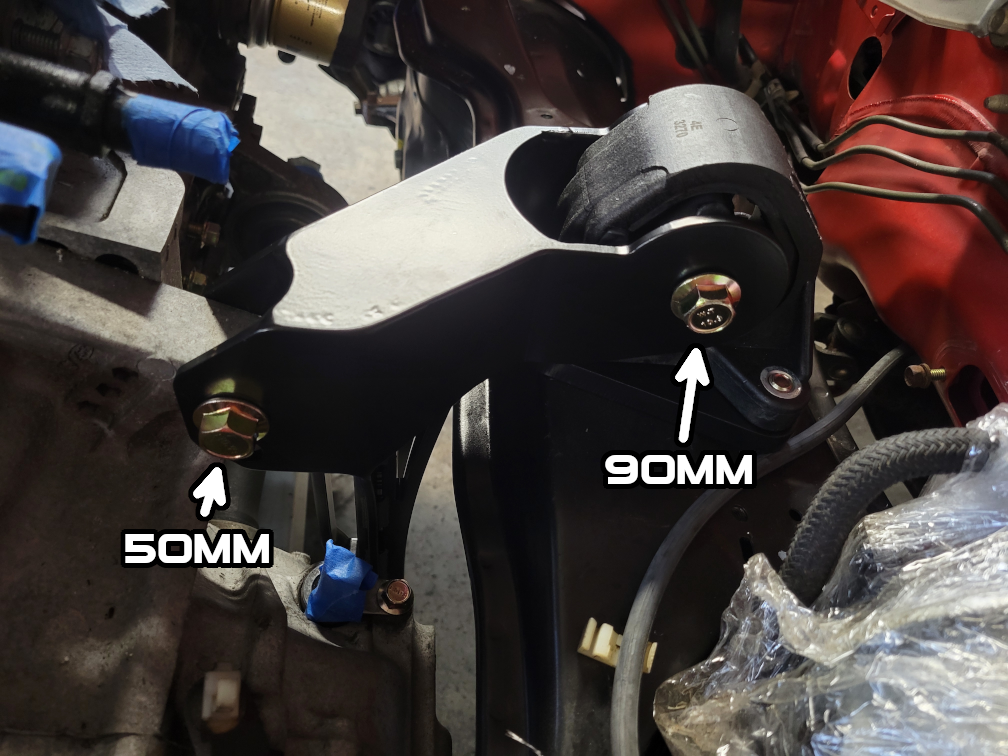

Rear Mount Brackets

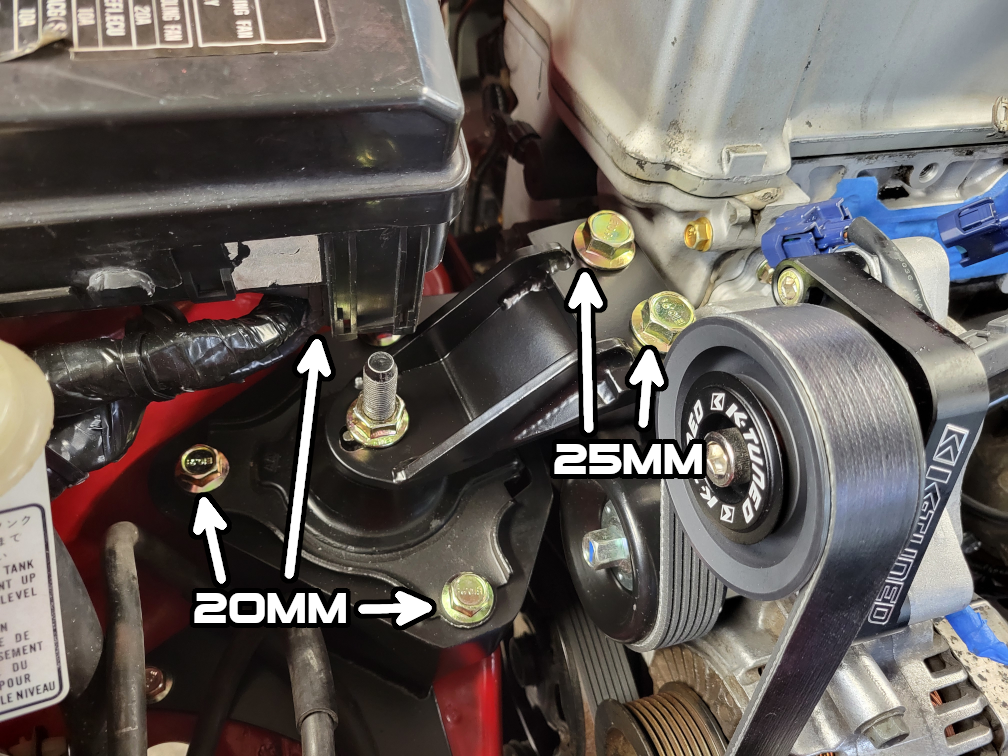

Right Mount Brackets

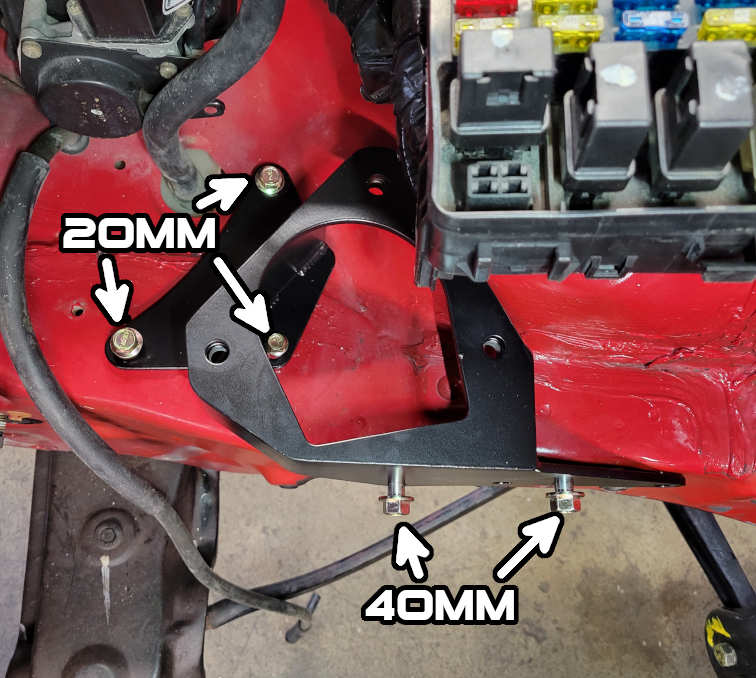

NOTE: One of the 20mm bolts shown in the following picture will need a M8x1.25 nutsert installed on the 88-89 chassis only.
See the K-Series Swap General Step-By-Step Guide for more info.

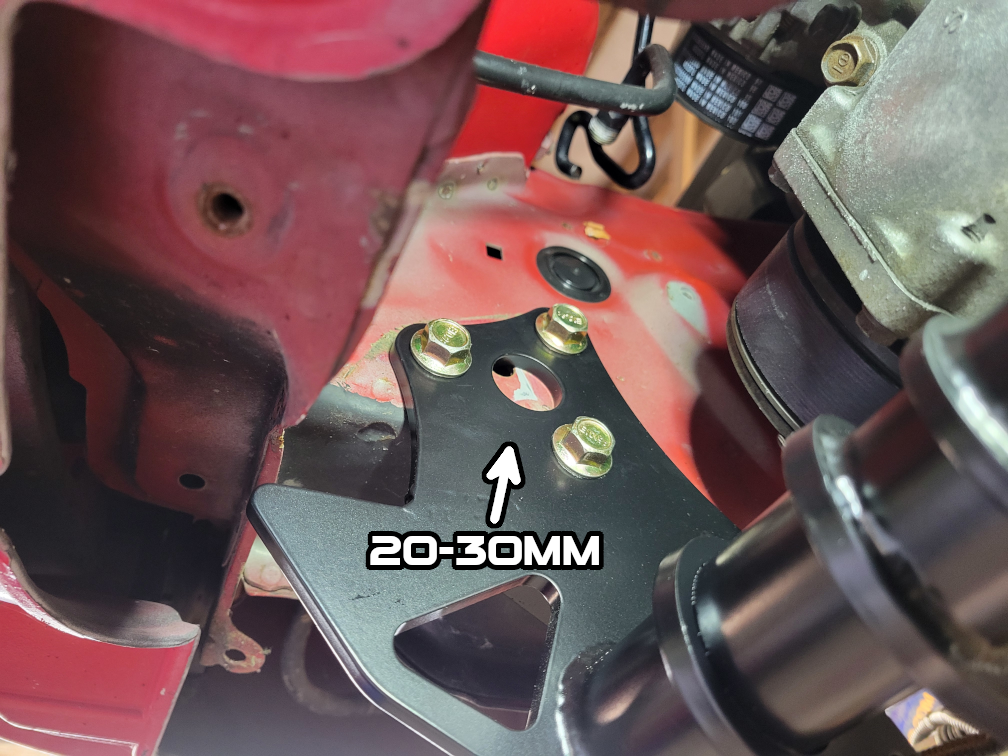

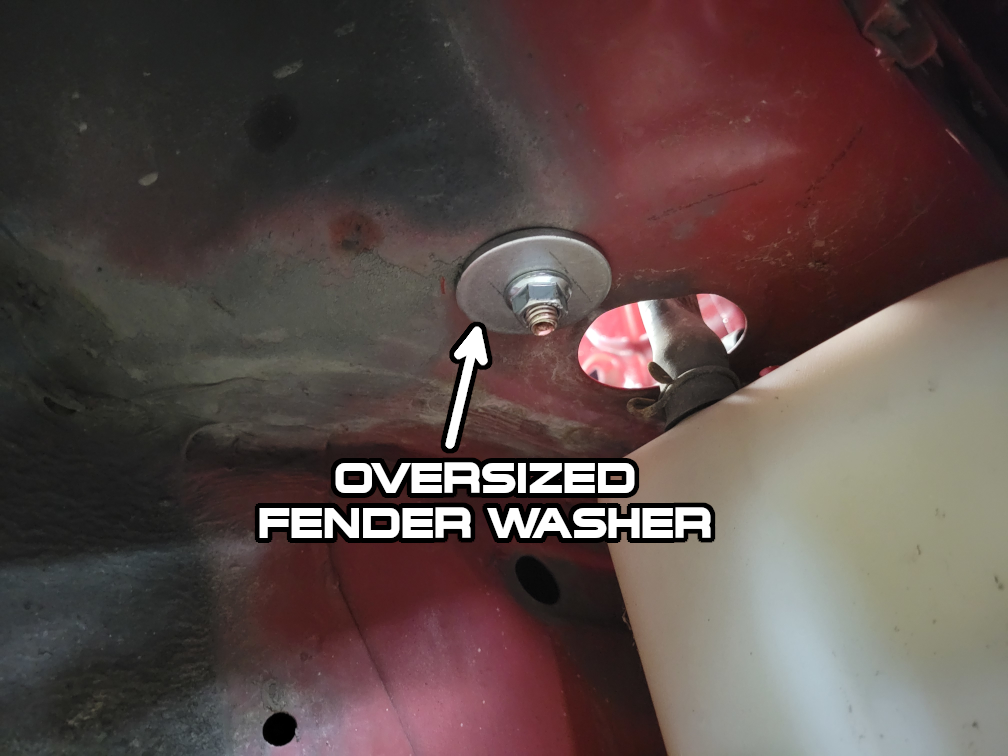

NOTE: One of the bolts will poke down into the fender well. Use the supplied oversized fender washer as shown:

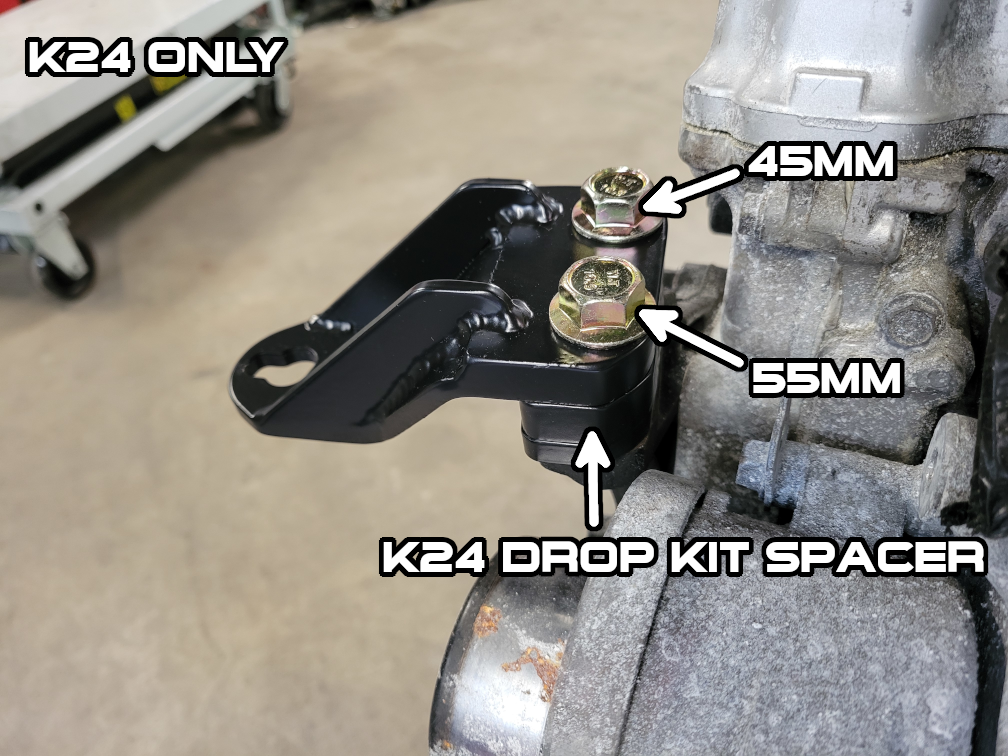

NOTE: K24 requires the extra spacer and longer bolts:

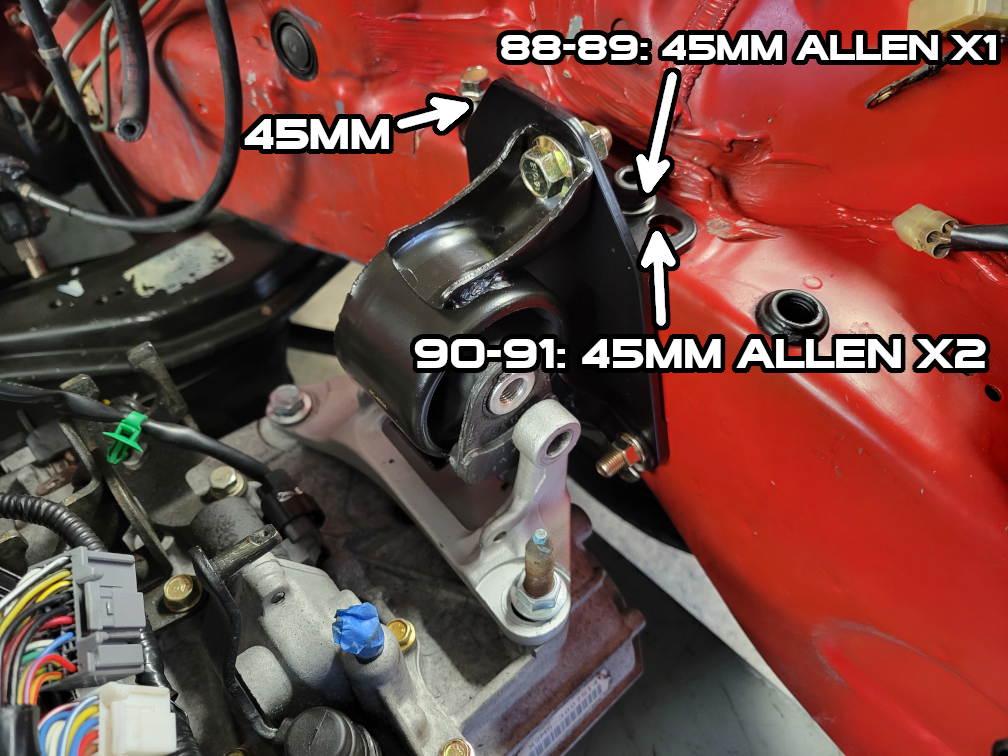

Left Mount Bracket

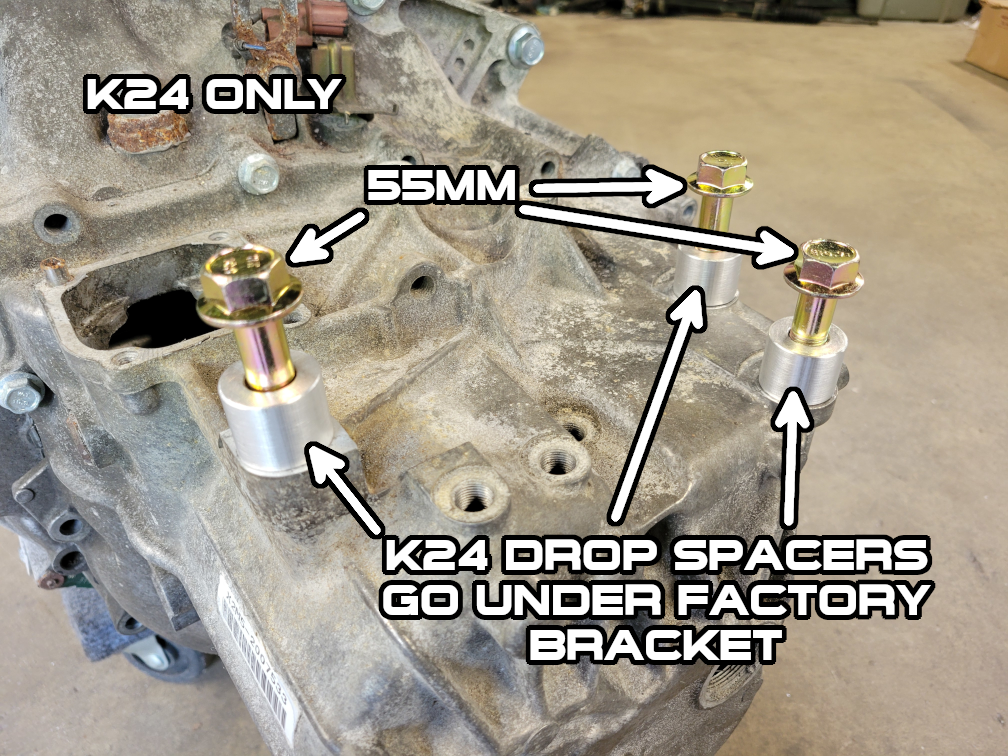

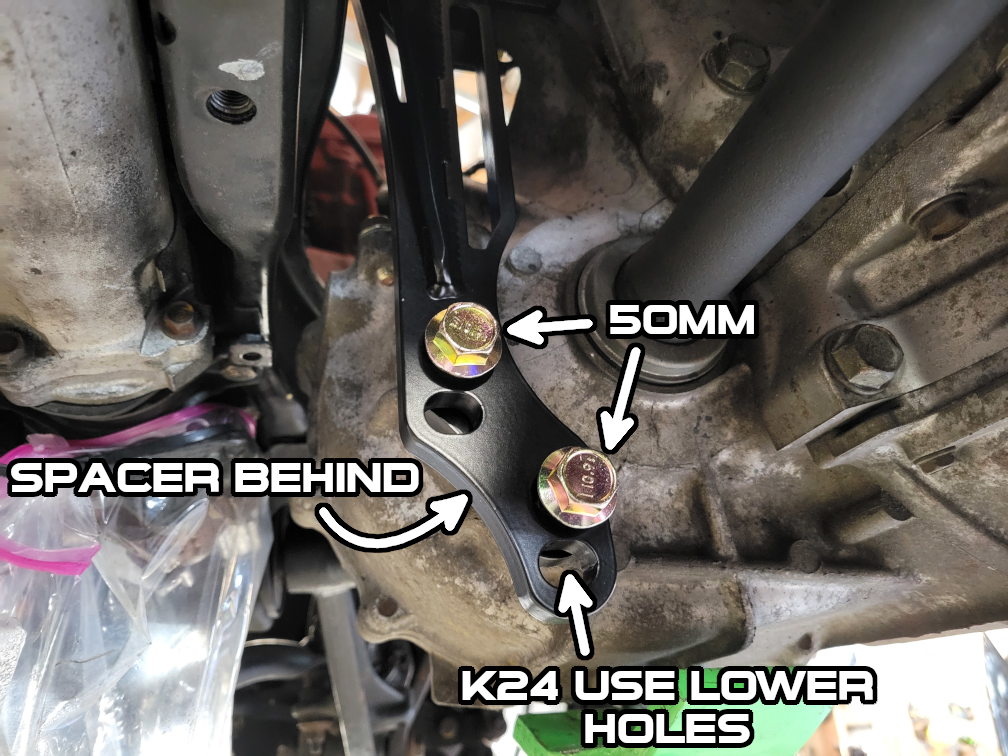

Note: K24 requires extra spacers and longer bolts:

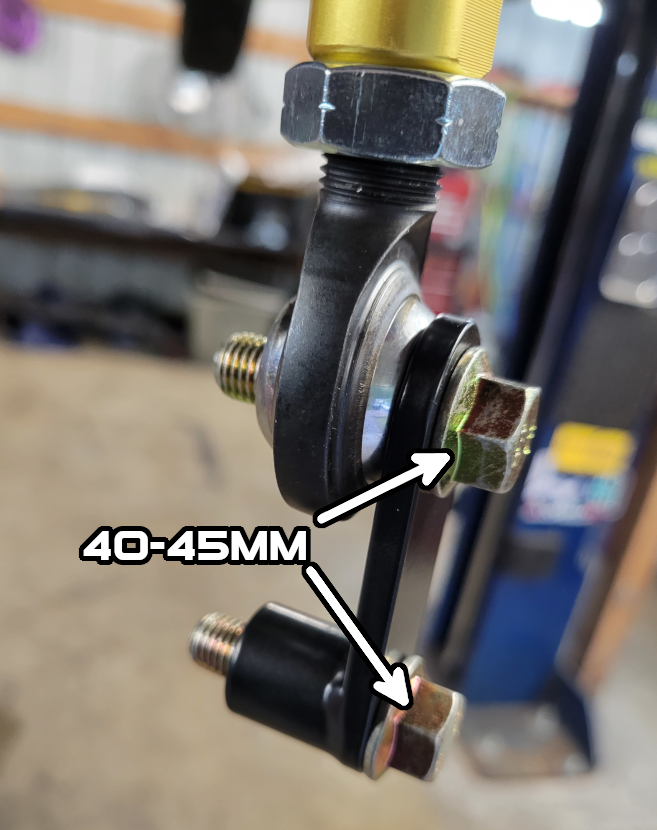

Front Mount Bracket

The front mount bracket is part of the traction bar:

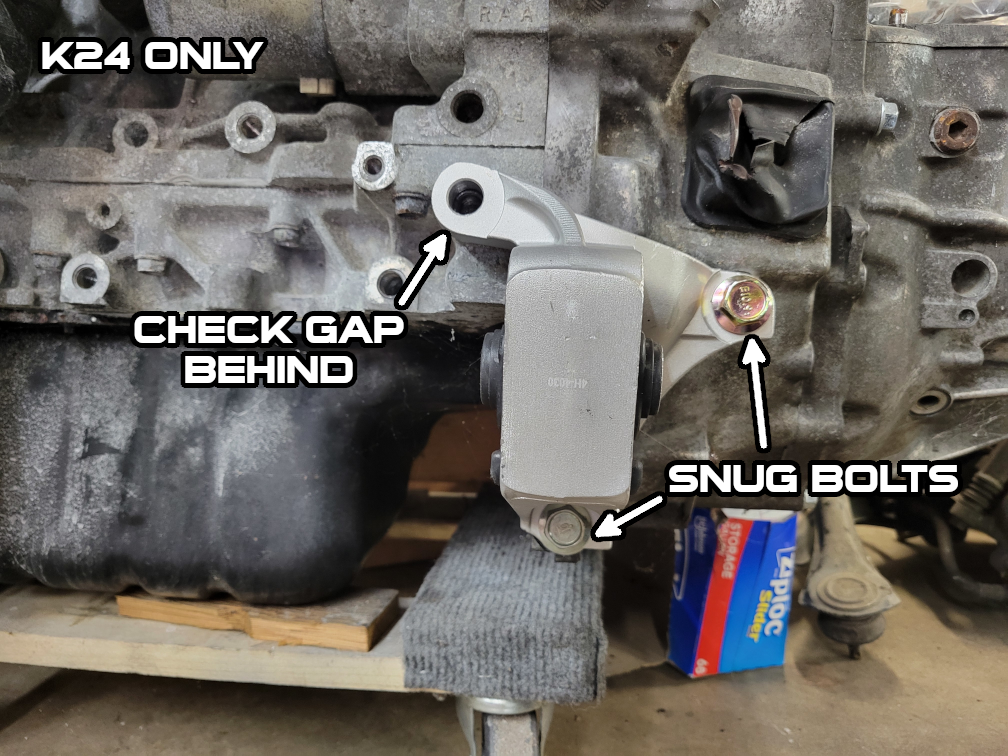

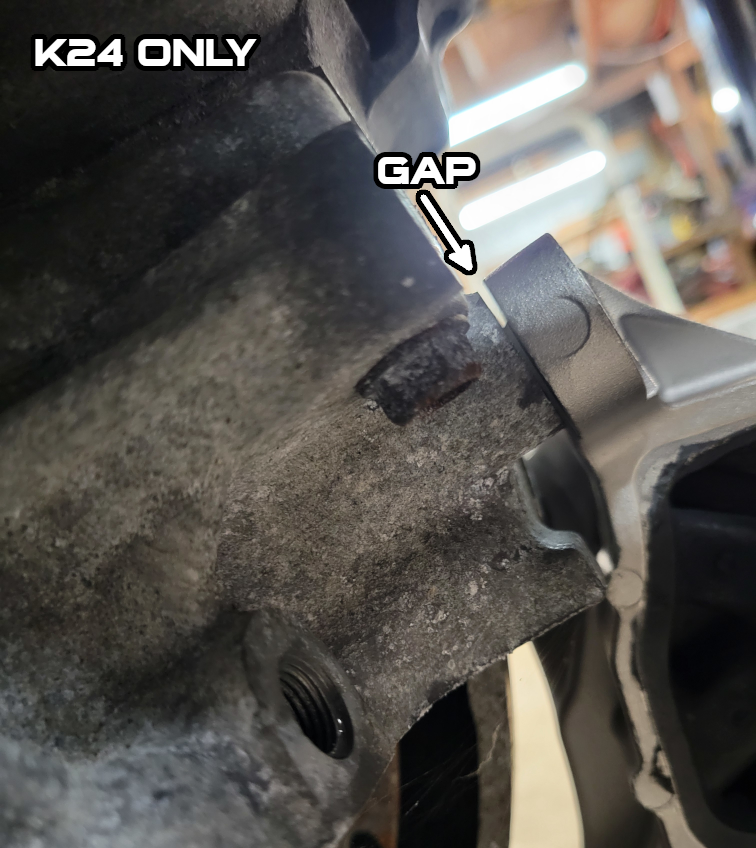

NOTE: When using a K24 block with the RSX front mount there will be a small gap behind the top mount bolt hole. Snug the lower 2 bolts and check for the gap:

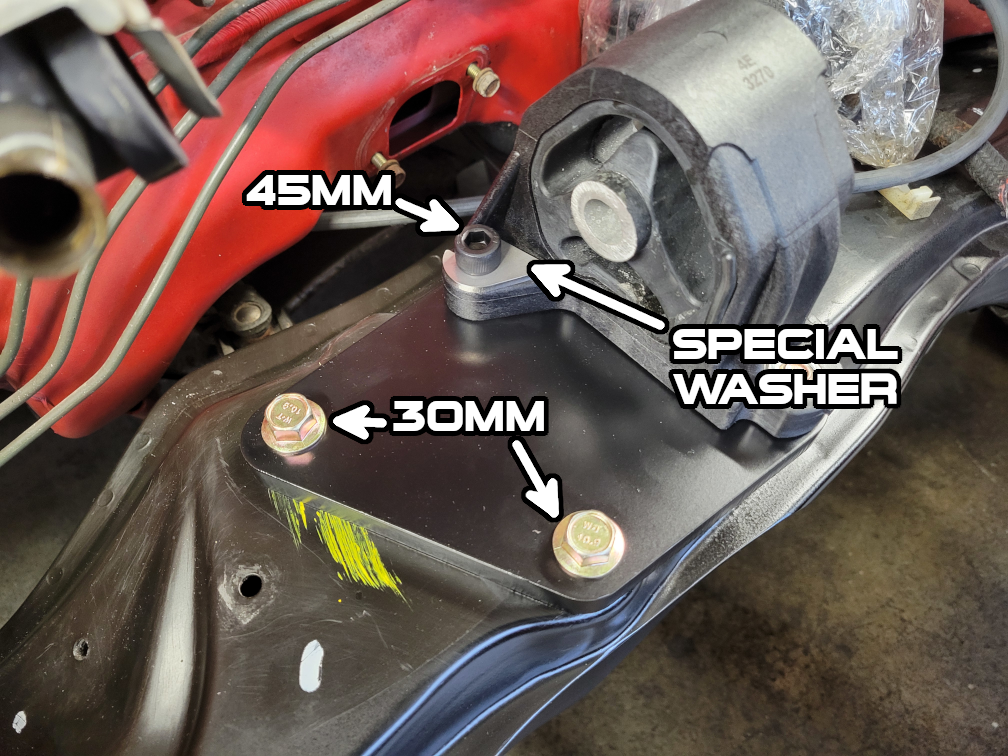

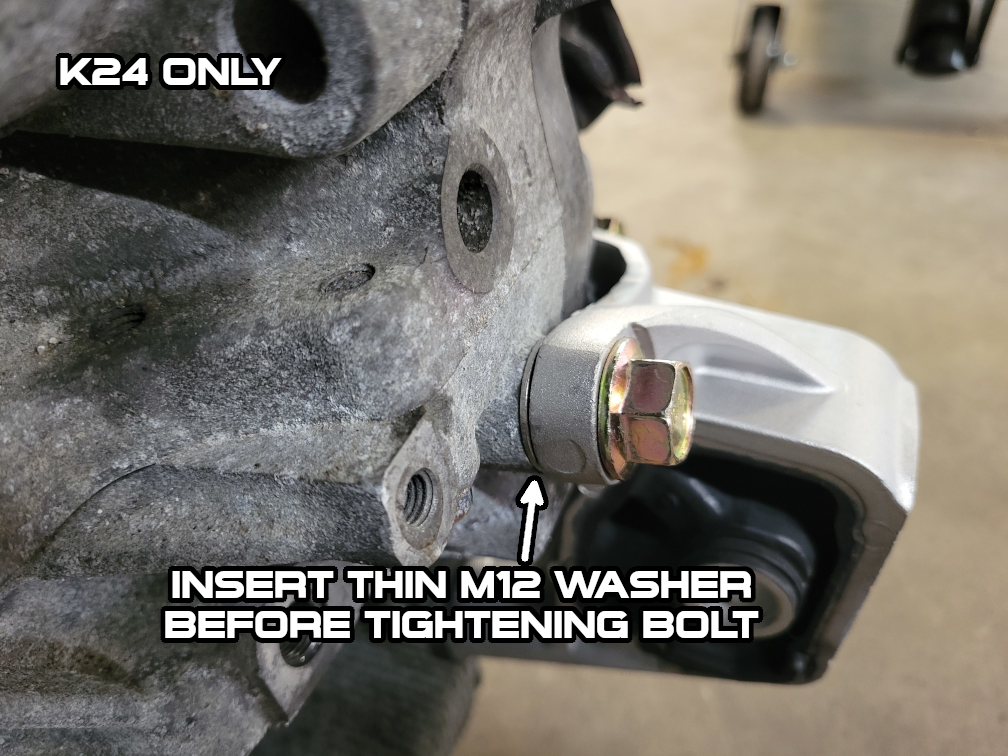

NOTE: The K24 drop kit comes with a special thin M12 washer that you should install here. Failure to use the washer may cause the cast aluminum mount to crack when you tighten the bolt:

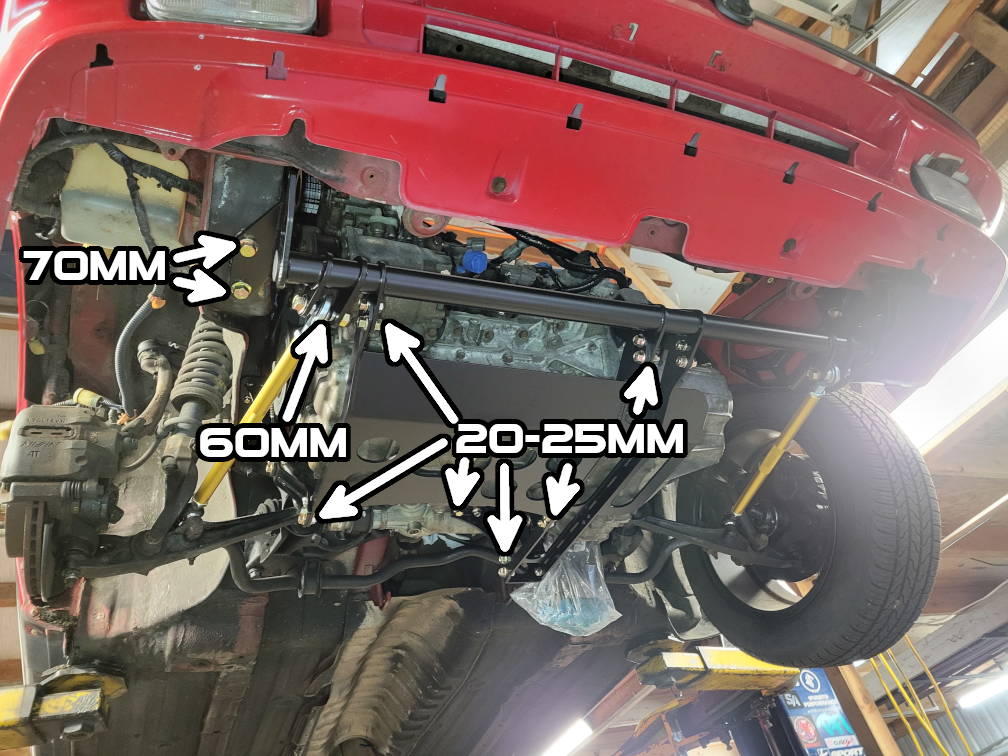

Traction Bar, Skid Bar, Skid Plate
