K-Series Currently Supported K-Series Engines, Transmissions, Shifters, Wiring, etc

Jan 6th 2025

The K-series spans many years. Unlike older Honda engines there are more parts variations in the K-series engine / transmission family. This makes supporting the K-series swap more complex than older swaps as there are many variables to account for.

Some difference examples of this are:

  • Block heights (K20 vs K24)
  • Head castings
  • Oil pans
  • Shifter arm configurations
  • Transmission case (RSX/Civic SI, Accord/TSX, and AWD)
  • Intake manifolds (PRB, PRC, RSP, RBC, RRC,  RBB, etc.)

For the initial K-swap kit release Prelude Engineering LLC will support a few specific engine/transmission/wiring configurations:

  • 02-04 RSX Base - Engine, transmission, wiring (K20A3, ~160hp, 5-speed transmission)
  • 02-05 Civic SI - Engine, transmission, wiring (K20A3, ~160hp, 5-speed transmission)
  • 02-04 RSX Type-S - Engine, transmission, wiring (K20A2, ~200hp, 6-speed transmission)

These setups are fully supported right now. Just buy a complete swap from one of these cars and you will be able to complete your K-swap with minimal fuss.



The swap brackets and traction bar WILL still allow you to physically swap in other K-series!

However, some things like wiring, intake manifold clearance, shifter setup, radiator hose routing, etc. has not been fully "figured" yet.

Some examples:

  • You want to use an 05-06 RSX Type-S engine harness with your swap; you will need to figure out how to adapt the engine harness to the car yourself.
  • You want to run a K24A engine; the radiator hose ports are oriented different so you will need to make adjustments for that.
  • You want to run an RBC intake manifold; the the stock radiator will not fit, you must use a tucked radiator for clearance.

These are just some examples of what you might have to deal with if you are swapping in something that isn't listed as fully supported above.

We have started a Facebook group just for discussing these type of issues here: https://www.facebook.com/groups/8891hondapreludekseriesswapcommunity




Engine and Transmission Compatibility

Here are the engines and transmissions that are physically compatible with the swap brackets and traction bar. The ones known not to be compatible are also listed.



Engine years: Select 2002-2011 Honda and Acura models
Engine codes:


  • K20A
  • K20A2
  • K20A3
  • K20Z1
  • K20Z2
  • K20Z3
  • K20Z4
  • K24A
  • K24A1
  • K24A2
  • K24A3
  • K24A4
  • K24A8


Not compatible: K20B, K20C, K23A, K20Z (Earth Dreams), K24Z, K24W, K24V, K20Z5 from 2023+ Honda HR-V.


Transmission source: 02-06 RSX and 02-11 Civic SI manual transmissions only.
Transmission codes:

  • X2M5
  • Y2M3
  • NRH3
  • NPR3
  • NPQ3
  • NSN4
  • PNN3
  • PNN4
  • W2M5


Not compatible: This kit does not support Accord or TSX transmissions at this time (support coming soon!). It also will not work with any AWD transmission.

Not sure if your transmission is compatible? Check the mount points on the rear of the case:



Shifter / Shift Cables

If you do not care about center console clearance then you can use any shifter + cable setup that matches your transmission (OE or aftermarket). Just install the cables, place the shifter where you want it, mark the hole locations, and drill new holes in the center tunnel.

The OE K-series shifter bases tend to be large and bulky. The center console is unlikely to fit without trimming or removal.

Prelude Engineering LLC is designing and offering shifter setups that will fit under the center console, allowing for that OE look.

There are several different possible shift setups for the K-series:

02-06 RSX / 02-05 Civic SI (Currently Supported)

03-07 Accord / 04-08 TSX (Coming Soon)

06-11 Civic SI (Coming Soon)

12-15 Civic SI / 08-12 Accord / 13-15 ILX / 09-14 TSX (Coming Soon)

All of these will require Hybrid Racing HYB-SCA-01-07 shifter cables. Currently only 02-06 RSX / 02-05 Civic SI is supported, but support for the other transmissions is coming soon.


Clutch Slave Cylinder

There are two versions of the clutch slave cylinder. One is just a basic cylinder and the other has an integrated delay valve. The delay valve limits how quickly the clutch can be released.

We recommend going with the slave cylinder without the delay valve:

This is what the delay valve style looks like:


VSS vs CSS Transmissions

Using a transmission with a countershaft speed sensor (CSS) instead of vehicle speed sensor (VSS)? Want your speedometer to work correctly? Check out this blog post:

K-Series Swap Getting Working Speedometer with CSS Transmissions


Flywheel / Clutch

The flywheel, clutch, and pressure plate setup is different between the RSX BASE model (eco K-series) and Type-S (performance K-series). You can use either configuration on any trans (example: BASE model fly, clutch, pplate on a 6-speed). You just need to make sure all 3 components match, you can not use a BASE pressure plate on a Type-S flywheel.

Most aftermarket upgraded parts are based on the Type-S. If you are buying new you should just buy a flywheel, clutch, p-plate for the 02-06 RSX Type-S / 06-11 Civic SI.

We recommend using a genuine Honda/Acura clutch release bearing, not an aftermarket bearing. Aftermarket bearings are known for going bad quickly.

The K-series clutch release bearing has two different part numbers depending on the model and year:

22810-PPT-003 or 22810-57A-006


However, if you look at the model years where it changed, between the 2007 Civic SI and 2008 Civic SI for example. All the other surrounding/related part numbers are the same: bell housing, clutch fork, fork pivot bolt, flywheel, clutch, pressure plate, etc.

This leads us to believe they are interchangeable, we will be testing this in the future. If you want to be safe order the specific part number for the year of your transmission.


Engine Mounts

To mount the engine you need to acquire the full set of 02-04 RSX Type-S M/T engine mounts. This makes sourcing replacements easy and provides an enjoyable low vibration swap:

Clearance between the engine and hood on this swap is minimal, for the best ground clearance. Running worn or torn mounts isn't a good idea for this swap.

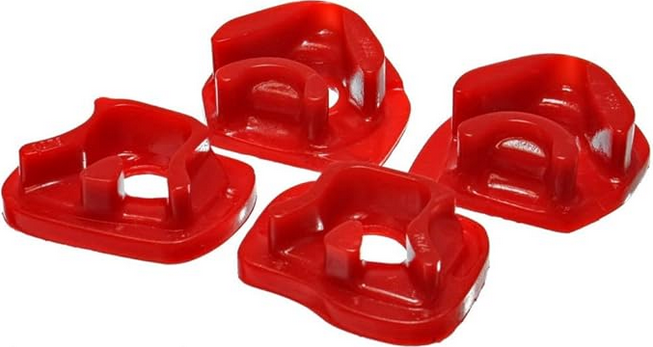

Want a firmer mounted engine? The easiest and cheapest way to do that is to add some Energy Suspension poly mount inserts to the stock front and rear mounts:

The Energy Suspension part numbers for these are:

Red: 16.1110R

Black: 16.1110G


Engine Brackets

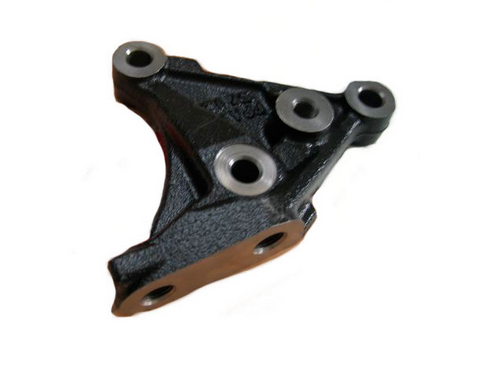

There are severak different K-series post mount brackets out there. You need to use a specific one depending on if you are swapping a K20 or K24A. Here are the Honda part numbers and which vehicles they come from:

K20 Requires: 11910-PNA-000 (02-06 RSX, 02-05 Civic SI)

K24A Requires: 11910-PPA-000 (02-06 Honda CR-V)




K24Z BONUS INFO

K24Z Requires: Hasport universal K-series post mount bracket (UKBB)



Although we currently list the K24Z as "not compatible", in truth you could mount it with our kit if you use this Hasport post mount bracket (need that slotted lower hole).

Keep in mind; If you want to run the K24Z with a 02-04 KPRO equipped ECU you must use the KPower K24Z Hybrid Timing Chain Cover to make use of a K20A/K24A style crank position sensor.

We do not officially support the K24Z at this time. Please research the differences (crank position sensor, single exit exhaust port, etc.) before you try to use one of these engines.


You need the factory top transmission bracket when using any of these transmissions:

  • 02-06 RSX
  • 02-05 Civic SI
  • 06-11 Civic SI
  • 12-15 Civic SI
  • 08-12 Accord
  • 09-14 TSX
  • 13-15 ILX

Honda part number: 50825-S7C-000

The 03-07 Accord and 04-08 TSX transmissions do not use this bracket.


Hood Clearance Parts Required

We designed the K-series swap to sit as high as possible for maximum ground clearance. This requires running a low-profile oil cap and dip stick. The OE cap and dip stick will dent the hood if you try to close it on them.

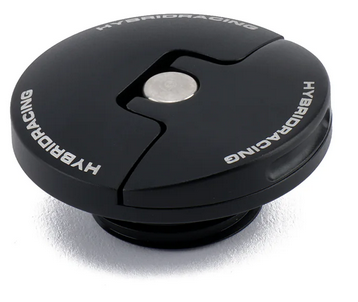

We recommend the Hybrid Racing oil cap and dip stick:


A budget alternative is simply cutting/trimming the OE pieces to make them shorter. Because of the tight clearance we recommend carefully closing the hood rather than letting it slam shut.


Oil Filter Clearance

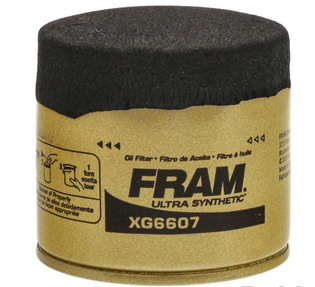

If your K-series does not have an oil cooler or sandwich plate then you don't need to do anything for filter clearance.

If your K-series has an oil cooler or sandwich plate then you should trim this portion of the lip on the subframe for clearance:

With the lip trimmed there will be just enough clearance to install/remove the oil filter. This picture shows two different types unscrewed nearly all the way, for reference:

If you really don't want to trim the subframe but have an oil cooler/sandwich plate one alternative is to run a shorter 02-06 Honda Insight oil filter. In OE spec these were shorter than the standard Honda filter and will still clear the subframe. You may need to try several brands as some brands list the standard length filter for the 02-06 Insight:

In case it's not clear: There is no clearance to run the factory oil cooler AND a sandwich plate.




Axles

The axle situation for this swap is nice and easy:

  • 88-89 Prelude: Use 02-06 RSX BASE manual axles
  • 90-91 Prelude: Use 02-06 RSX TYPE-S manual axles



You will need to remove the dust ring on the inside of the knuckle/hub or the RSX axles will bind on it when the nut is tightened:






Half-Shaft

Use the RSX Type-S or Base M/T half-shaft. (44500-SCV-A00)

Other half-shafts may work but they have not been tested yet.






Header

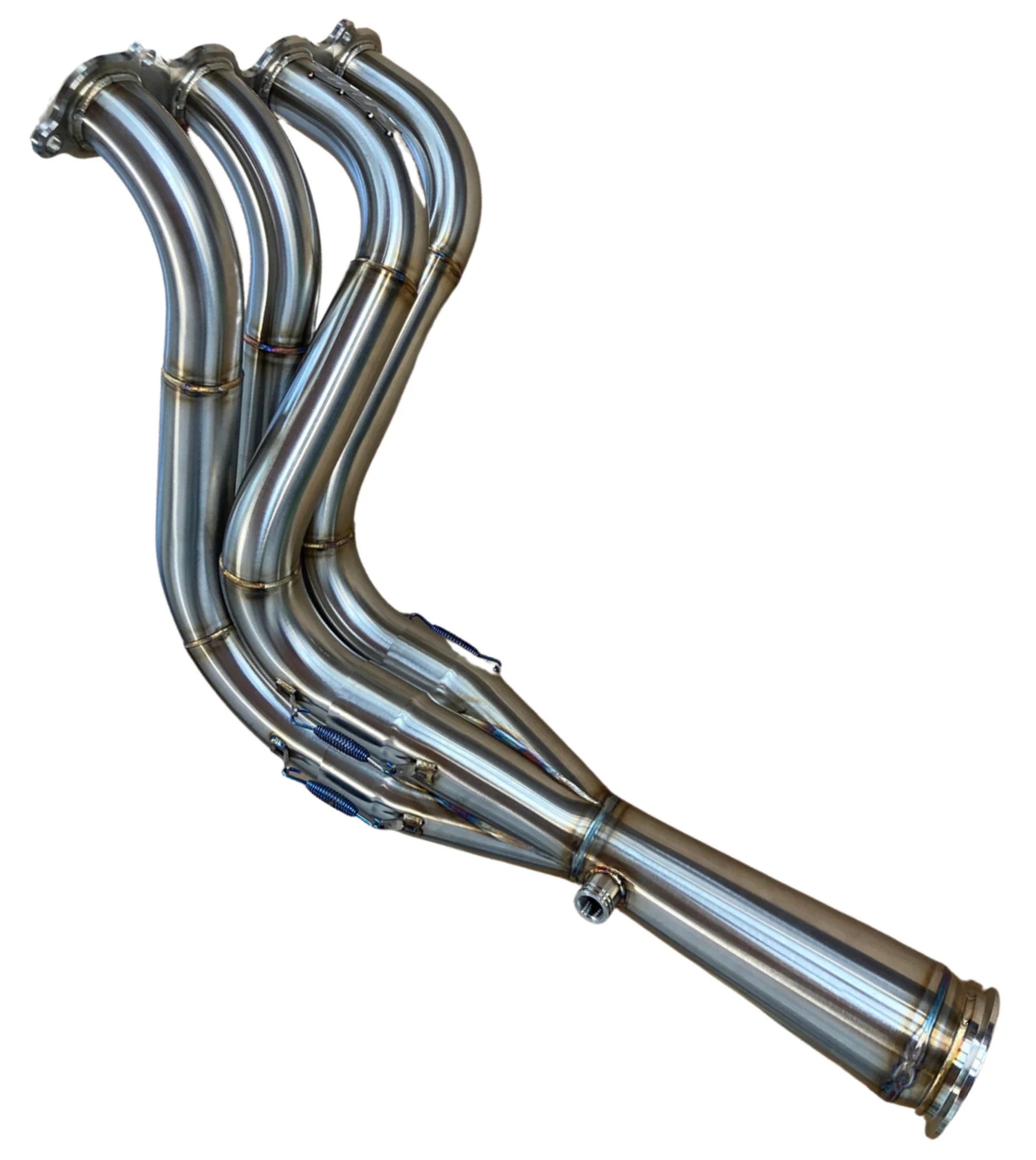

You can't use any (known) OE K-series header because their exit angle is incompatible with the subframe. You will need to run a K-swap header. We have a dedicated header fitment blog post here:

https://prelude-engineering.com/blog/kseries-swap-header-fitment-information/






Intake Manifolds


There are a number of different intake manifolds available for the K-series both O.E. and aftermarket. We have tested some, but not all of them. If the manifold isn't listed here then it hasn't been tested for fit yet.

Intake manifolds can be sorted into three categories:

  • Manifold fits with the stock radiator in stock position
  • Manifold requires the stock radiator leaned forward
  • Manifold requires a tucked radiator



Manifold fits with stock radiator in stock position:


PRB - This is the manifold the initial K-swap was built around. As you can see the upper radiator hose must take a tight turn and comes very close to the manifold.

Consider this the "benchmark" manifold that others here will be compared to as far as fitment goes.



PRC - The fit on this manifold is the same as the PRB above.

RBB - This manifold tucks downward so it should fit good.





Manifold requires the stock radiator leaned forward:

RBC - The shape/length of this manifold means it will interfere with the upper radiator hose. It requires cutting a tight 90 degree hose section off the radiator and you should lean the radiator forward for more clearance. The brake booster port on the RBC manifold will probably need to be bent away from the hood or relocated.

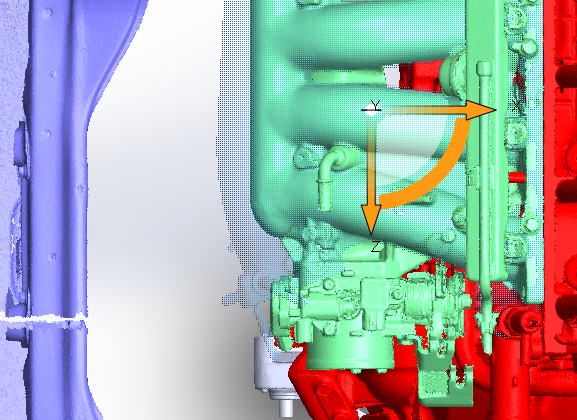

Here you can see the RBC silhouette vs. the PRB:



RRC - This manifold has a very similar shape to the RBC so fitting it should be the same.

Skunk2 Pro Series - The shape of this manifold is similar to the RBC and it has similar clearances issues.

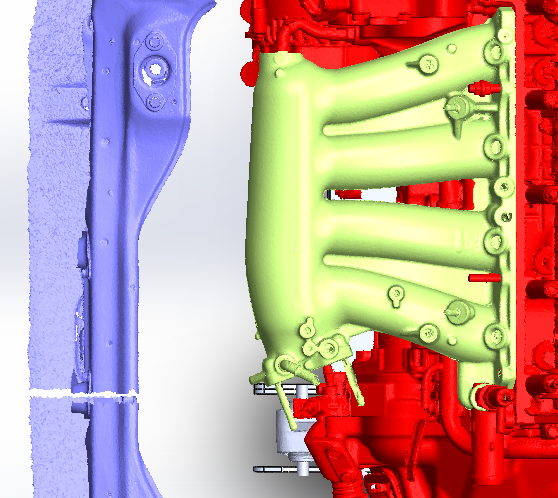

The Skunk2 Pro silhouette vs the PRB:

Manifold requires a tucked radiator:

We have not confirmed any manifolds for this yet but you can assume any ITB setups will require a shorter tucked radiator (if the ITBs even clear the hood).


Shifter / Cable Setup


We are designing shifting setups for this swap that look OE on the interior. That means you will be able to run the factory console and shifter boot.

If you don't care about those items then you can use any shifter or cable setup you want (like a fancy billet shifter). Just drill new holes for the shifter you choose and bolt it down.

However, if you want the OE look that fits under the center console then we are offering shifter bases and cable bracklets for these transmissions to make that happen:

  • 02-06 RSX / 02-05 Civic SI
  • 06-11 Civic SI (Coming Soon)
  • 03-07 Accord / 04-08 TSX (Coming Soon)
  • 2-15 Civic SI / 08-12 Accord / 09-14 TSX / 13-15 ILX (Coming Soon)




Engine Harness and ECU

Grab a used OE engine harness from one of these models, or buy a new aftermarket (Rywire) 02-04 RSX Type-S spec aftermarket harness:

  • Civic Si 2002-2005
  • RSX Base 2002-2004
  • RSX Type S 2002-2004

You can use any of these harnesses with any transmission. However for 6-speeds if you want the reverse lock-out to work then you must use a RSX Type-S harness (or modify a 5-speed harness).



You will need a Hondata KPro compatible ECU with KPro installed. This is required for disabling the immobilizer, multiplexer, VTEC pressure switch, etc. by using the KManager software. It also has the same issue as the harness in regards to the reverse lock-out; the ECU must be from a 6-speed in order for the reverse lock-out to work (or use one of the alternative solutions on a 5-speed ECU).

Hondata lists these ECUs as compatible with KPro:

  • PRB (A01-A12 & 305)
  • PND (A01-A09)
  • PNF
  • PRA
  • PRC (JDM DC5 Integra Type R)
  • PRD
  • PPA (A0#, A5#)
  • PPL (A0#, A5#)

Or to go by the models they were offered in:

  • Civic Si 2002-2005
  • Civic Type R 2001-2005
  • RSX Type S 2002-2004
  • RSX Base 2002-2004
  • Integra Type R 2002-2006

Please contact a Hondata KPro dealer to make sure you get the right ECU. If you are going to be running a CSS speed sensor transmission then you definitely want to get the "CSS mod" done to your KPRO v4 ECU by your Hondata dealer.




Throttle Cable

The Prelude cable is too short to reach the K throttle body. Use this part number from Hybrid Racing (56.5" Long):

  • HYB-TRC-01-05

This info applies to left-hand drive cars only. RHD may be able to use the OE cable or one of the longer offerings from Hybrid Racing.




Oil Pans

You will want to use either of these pans for this swap:

  •     11200-PRB-000 Aluminum (02-06 RSX Type-S)
  •     11200-RAA-A00 Steel (02-06 RSX Base, 02-06 CR-V, 03-07 Accord, 02-05 Civic SI, 03-11 Element)



I recommend going with the steel pan if you are buying new. It has slightly more clearance since the steel wall is thinner, and it should deform rather than crack if it does take a hit.

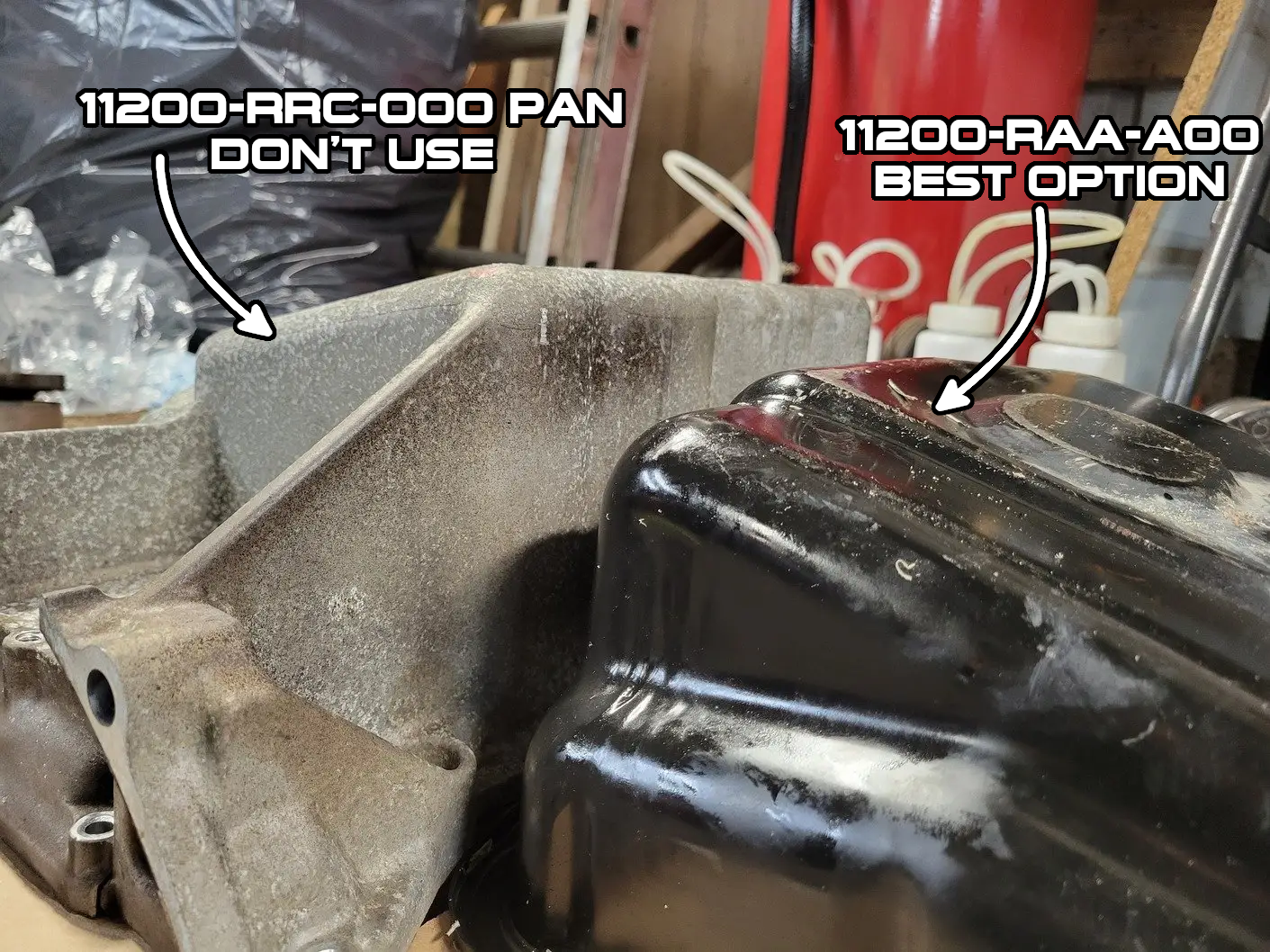

The pan that you do NOT want is the K20Z3 "11200-RRC-000" aluminum pan. This pan is deeper and will reduce available ground clearance. If your engine has the K20Z3 setup on it then it can be converted to the shorter setup by switching to a K20A2 oil pump and either of the previously listed pans.




Fuel System

Stock K-series cars have their fuel pressure regulator (FPR) located in the tank at the pump. 3g Prelude has it the FPR mounted on the fuel rail. This means for a K-swap you must install a FPR somewhere in the system.

You can use the O.E. Prelude fuel supply system all the way up to the fuel filter exit if you desire. From the filter to the fuel rail will need a custom line made.

A cleaner setup is to remove the O.E. filter and run a new line right from the firewall fitting. You just need to install an inline filter somewhere in the pressure line before the fuel rail.

The K-series fuel rail is set up for a return-less system (aka. dead-head system). That means there is only 1 port on the factory rail for the pressurized fuel to enter and they do not have a fuel pressure regulator or return port.

There are a number of ways to go here but the simplest configuration would be a firewall mounted external fuel pressure regulator. Run the pressure line to the regulator, then to the rail. The return line will also connect to the regulator. Here is an example image from Radium Engineering:

Another alternative is using an aftermarket fuel rail with a port for a return line. You will still need to install a fuel pressure regulator somewhere though.

We recommend avoiding fuel pressure regulators that are mounted directly to the fuel rail, due to hood clearance concerns.

Our favorite is the basic but high quality Radium Engineering Fuel Pressure Regulator with 3.0 bar top (20-0010-00).

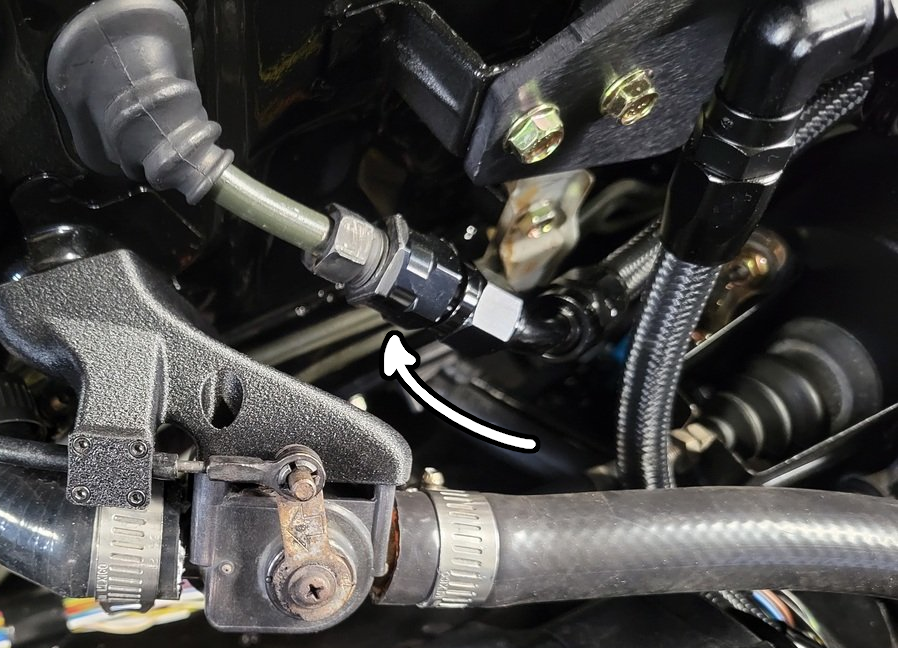

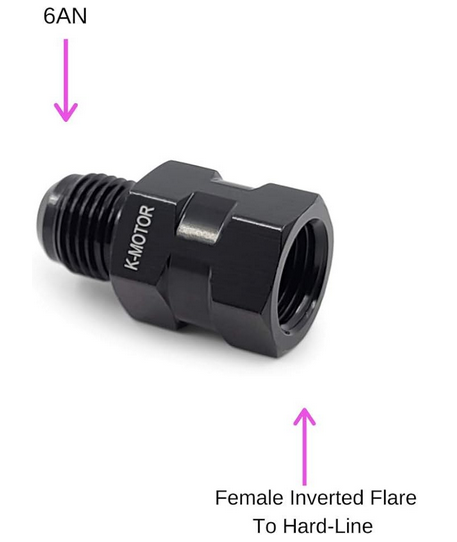

To convert the fuel line coming out of the firewall to 6AN you will need a "M14x1.5 Inverted Flare to 6AN Long Type" adapter fitting. Here are two examples:

Radium Engineering 14-0118

K-Motor Long Type






Cooling

The stock radiator will work fine for this swap. The upper hose you build will need to take a tight 90 degree turn off the radiator to clear most intake manifolds. We offer new K-Swap Radiator Lean Mounts that will lean the top of the radiator forward slightly for some extra clearance which will really help with RBC or Skunk2 Pro manifolds.

Currently for the radiator hoses you will need to build them yourself. We use pre-formed silicone hose bends and joiners from Pegasus Auto Racing. We are working on a more extensive document for this but the main thing you should know is that both the stock radiator and K-series engine use 1 1/4" (1.25") ID hose.

When you build the hoses make sure they have some "give". Since this swap uses rubber mounts the hoses must have enough material to flex a bit as the engine rocks.

To join the silicone hoses we use 32mm (1 1/4 inch) Pegasus Pro Design Aluminum Hose Joiner (HJ32):

You can use regular hose clamps but we really like the Gates PowerGrip SB41 Clamp for Hose O.D. 1-1/2 to 1-3/4 (GTS-32941) heak shrink clamps. We also use a little brake cleaner on a rag to wipe off the white text before we shrink them. When combined with black silicone hoses they give a pretty clean overall look:

On our K20a2 swap we used:
Upper Hose:

  • 90 degree with 6" legs x3

Lower Hose:

  • 45 degree with 6" legs x2

On our Euro-R K20a / K24 swap we used:

Upper Hose:

  • 90 degree with 6" legs x2
  • 45 degree with 6" legs x2

Lower Hose:

  • 135 degree x1
  • 90 degree x1

These DIY silicone hoses should last "forever" but we understand they aren't the most budget friendly. You can achieve the same effect by cutting up and joining factory style rubber radiator hoses. You could probably find a bunch of good condition used hoses at your local Pick and Pull for next to nothing.


Heater Hoses

The heater hose connections on the firewall are 5/8". On the K-series engine one is 5/8" and the other is 3/4". This means you will need a 5/8" to 3/4" joiner to step up one of hoses.

In addition; the factory heater valve points the hose right at the K-series header. On our initial swap we used a 135° bend here to point it back towards the firewall.

Here is how we set it up using the stock heater valve bracket:

The stock heater valve bracket setup is kind of ugly and not clean looking with this swap in our opinion. We have developed a new heater valve bracket which points the hose where it needs to go:


Air Conditioning

If you want to have A/C you will want to use a 02-06 RSX compressor and compressor bracket, these part numbers:

  • 38810-PND-006 - Compressor
  • 38930-PNC-000 - Compressor Bracket

We sell the conversion A/C and wiring kit you will need to get the A/C hooked up here:
https://prelude-engineering.com/k-series-swap-a-c-hose-and-wiring-kit/

It's possible our A/C lines will work with other compressors than listed but we can not guarantee anything.




Power Steering

All of the K-series hydraulic engine driven pumps are too large, they don't fit under the hood. Here is how bad the fit on the K-series pump would be, the pulley and feed fitting would stick out of the hood:

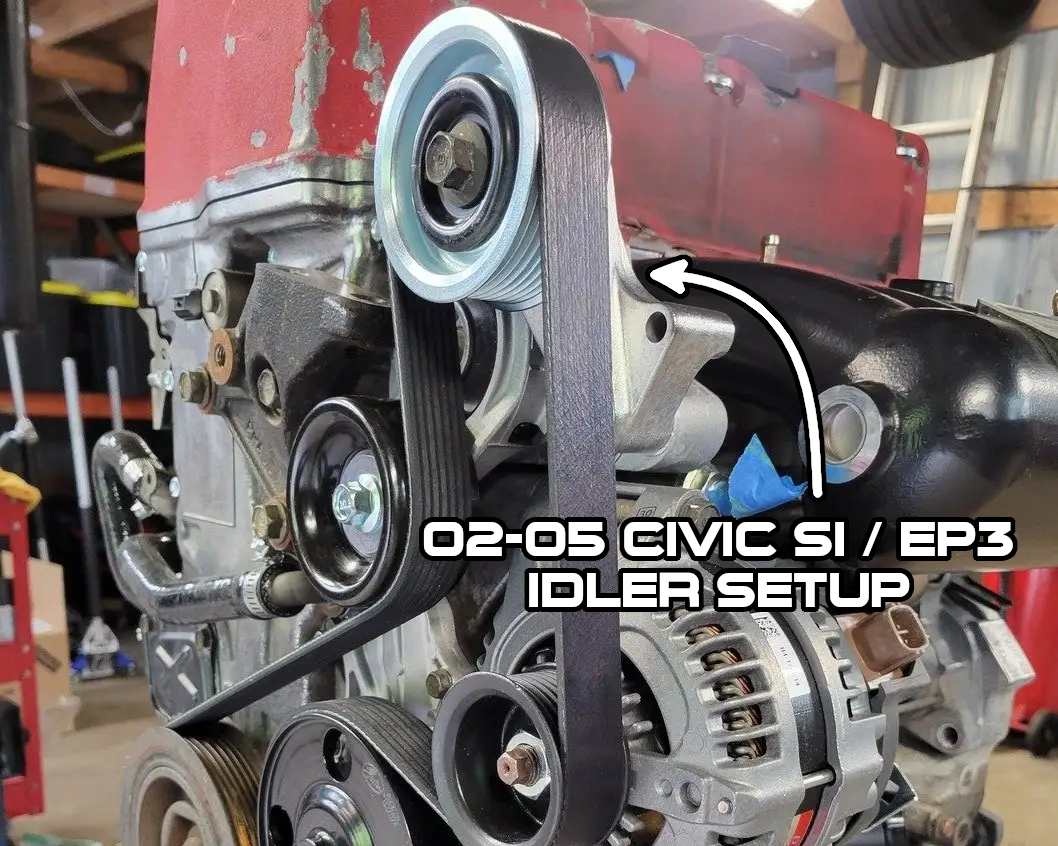

You will need to use an 02-05 Civic SI / EP3 style idler in place of the power steering pump on the engine:

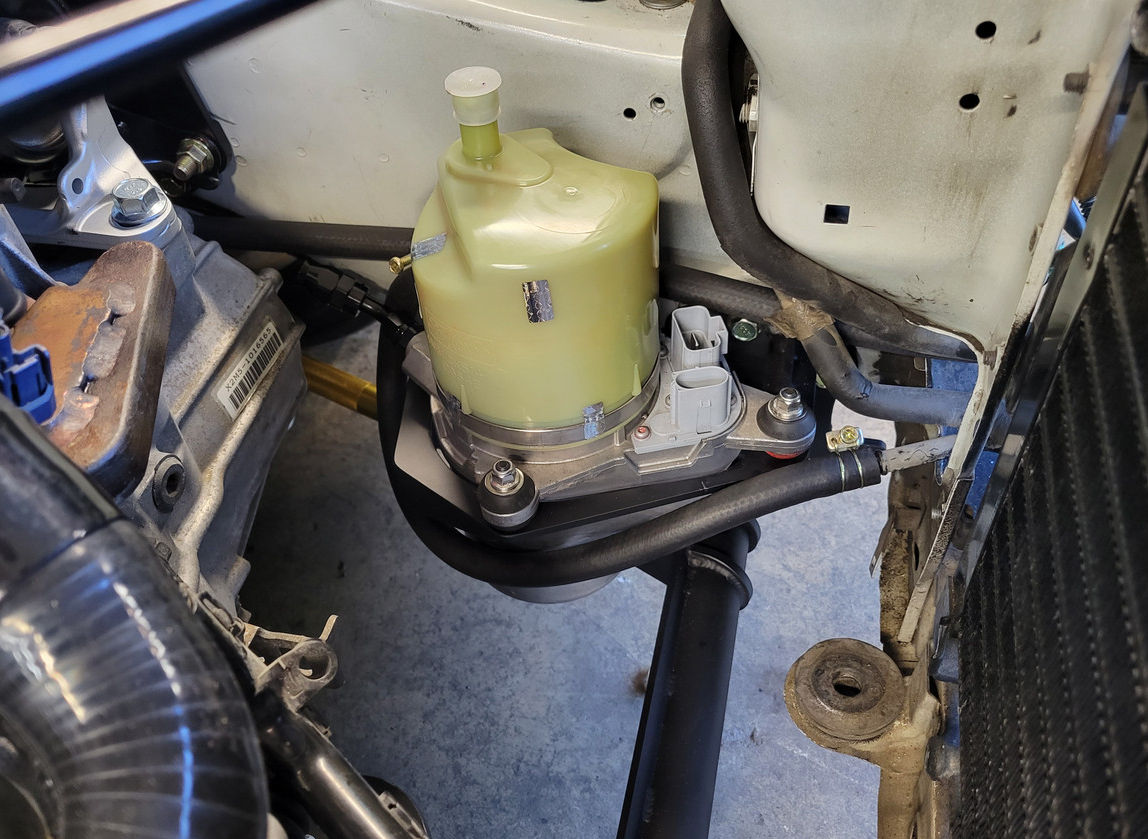

For the pump itself you will need to convert to an electric hydraulic pump.

We sell a mounting bracket for the electric power steering pump here:
https://prelude-engineering.com/k-series-swap-volvo-electric-power-steering-pump-mount-bracket/

This pump came on the following Volvos:

  • 2004-2013 Volvo S40 C70 C30 V50





There are two styles; one with a screw on cap and one with a tube top (the tube would run to a remote reservoir on the Volvo).

You can use either one, the tube top ones tend to be a little cheaper, but you will have to figure out your own cap solution.

The Volvo part numbers are:

  • 5N513K514 - Cap top
  • 4N513K514 - Tube top

Try to order one that comes with the connectors already, otherwise you will have to pay more for new connectors. You don't need the black mounting bracket they are sometimes listed with, just the pumps as shown above.


Tire Sizing

This swap really benefits from the increased ground clearance you can gain up upsizing the tire size (outer diameter). See this blog post for more info: https://prelude-engineering.com/blog/kseries-swap-tire-size-options/
